Description

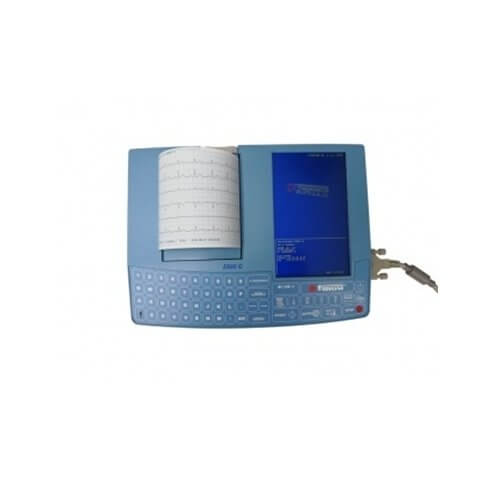

New 6 Channel E600G electrocardiograph

Product Description:

• Dimensions of the camera (L x W x H): 295 x 225 x65 [ mm ]
• Simple, intuitive input and editing of patient, physician and hospital data
• 1600 Hz sampling • Direct operation of external A4 printers
• Constant measurement and display of HR
• Standard leads / Cabrera
• Semi-automatic analysis and interpretation
• Automatic analysis and interpretation
• Modes of activity: manual, automatic, rhythm-like.
• Print frequency adjustment-4 levels: low, moderate, ordinary and peak
• Dual power supply system: power supply line and battery: built-in impedance power supply 90 -240V
• VGA 800 x 480 (7 inches) color touch screen monitor for simple ECG graphs from selected leads
• Visual and audio signaling of unconnected electrodes
• Printing in 1, 3, 6 and 12 ECG waveforms
• Filters: 50Hz/60Hz network; Adaptive filter
•  Print speed: 5; 10; 12.5; 25; 50 mm / s
• Sensitivity: 2.5; 5; 10; 20 mm / mV and AUTO
• Camera archive capacity: 1000 tests
•  Camera weight:1.5-1.8 kg (depending on the camera version)

Available Equipment:

• E61 trolley
• ECG cable extension arm Options:
• Additional 2 USB ports, Pendrive support (SCP, HL7, PDF or PNG graphic format)
• Wireless (Wi-Fi) LAN or Internet communication
• Wired LAN or Internet communication
•  Possibility to transfer ECG directly from the machine to your email inbox
